Button

A labelled button. Solid by default: a raised fill and an edge, with the theme's hover and press treatments. A ghost button has no fill or edge at rest and only lights up under the pointer. It is as large as its label plus padding.

Preview

SolidGhostDisabled

Verified render

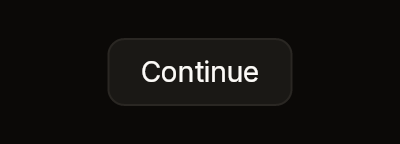

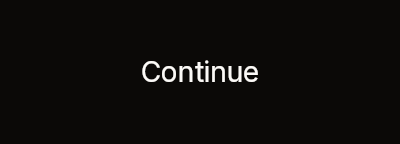

Fixtures: button-default, button-ghost and button-disabled. The ghost button draws only its label at rest. tooltip-above, popover-open and menu-dropdown show a solid button as the trigger of an overlay.

#Build

public static BibuiWidget Button(
    this BibuiRuntime runtime,
    string id,
    ReadOnlySpan<char> label,
    bool ghost = false,
    bool disabled = false,
    ComponentSize size = ComponentSize.Md)

#Claims and reports

• The box claims InteractionKinds.LeftPress, or InteractionKinds.Disabled when disabled.
• It returns a BibuiWidget: act on Clicked. Pressed and Hovering are there if you need them.

#State the caller owns

None. A button has no value. What a click means is up to you.

#Theme tokens

• Solid: the fill is SurfaceRaised, then SurfaceRaisedHover under the pointer and SurfaceRaisedActive while held. The edge is Border, then BorderHover, then Accent while held. These come from DrawFlags.Border | Background | HotEffects | ActiveEffects.
• Ghost: the hover fill is SurfaceRaised.
• The label is TextColor.Primary, or TextColor.Disabled.
• The edge is runtime.Theme.Borders.Width wide. The vertical padding is scaled by runtime.Theme.Density.

#Example

using Bibui.Core;
using Bibui.Core.Runtime;

sealed class Counter
{
    const string Minus = "−";
    const string Plus = "+";
    const string Reset = "Reset";

    int _count;   // the caller's state

    public UiNode Build(BibuiRuntime runtime)
    {
        var row = runtime.BeginParent(runtime.Row());
        if (runtime.Button("counter-minus", Minus).Clicked) _count--;
        runtime.Gap(8f);
        if (runtime.Button("counter-plus", Plus).Clicked) _count++;
        runtime.Gap(8f);
        // Disabled at zero: still there, and a press on it reaches nothing beneath.
        if (runtime.Button("counter-reset", Reset, ghost: true, disabled: _count == 0,
                size: ComponentSize.Sm).Clicked)
            _count = 0;
        runtime.EndParent(row);
        return row;
    }
}
