Separator

Returns BoxNamespace Bibui.Core.RuntimeSourceTheme tokens

A line the theme's border width thick, in the border colour. It takes nothing: it only divides.

Preview
Verified render
separator-horizontal
separator-horizontal

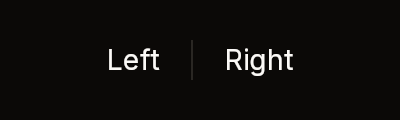

Fixtures: separator-horizontal and separator-vertical.

Build

C#
public static Box Build(BibuiRuntime runtime, bool vertical = false)

public const float Thickness = 1f;   // under the default theme

A horizontal separator is as wide as its parent. A vertical one is as tall as its parent, so in a row of centred items, the row must give itself a height. Size the box it returns to make it shorter or longer.

Claims and reports

None. It returns a keyless Box.

State the caller owns

None.

Theme tokens

  • Border, runtime.Theme.Borders.Width thick.

Example

C#
using Bibui.Core;
using Bibui.Core.Runtime;

sealed class Toolbar
{
    const string Cut = "Cut";
    const string Copy = "Copy";
    const string Help = "Help";

    public UiNode Build(BibuiRuntime runtime)
    {
        var row = runtime.BeginParent(runtime.Row().Sized(y: Size.Px(36f)));
        runtime.Button("toolbar-cut", Cut, ghost: true);
        runtime.Button("toolbar-copy", Copy, ghost: true);
        runtime.Gap(8f);
        Separator.Build(runtime, vertical: true);   // the row's 36 px
        runtime.Gap(8f);
        runtime.Button("toolbar-help", Help, ghost: true);
        runtime.EndParent(row);
        return row;
    }
}
