Tabs

Returns TabsWidget, BoxNamespace Bibui.Core.RuntimeSourceTheme tokens

A strip of tab headers on a raised track, with the active tab cut out of it in the background colour. The panel underneath is a separate call, so you decide what goes in it.

Preview
Verified render
tabs-account
tabs-account

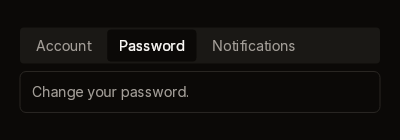

Fixtures: tabs-account and tabs-password.

Build and Panel

C#
public static TabsWidget Tabs(
    this BibuiRuntime runtime,
    string id,
    IReadOnlyList<TabOption> items,
    string? value)

public static Box Panel(BibuiRuntime runtime);

public const float Height = 36f;     // the strip, at the default density
public const float PanelGap = 8f;    // the space to put between strip and panel

public readonly record struct TabOption(string Label, string Value);
public readonly record struct TabsWidget(Box Node, string? Picked);
ParameterMeaning
idNames the tabs: {id}-{value}.
itemsThe tabs in order.
valueThe active tab's value.

The strip is as wide as its parent. Panel returns a bordered, padded column as wide as its parent and as tall as its content. Begin it as the parent and build the active tab's content into it.

Claims and reports

  • Each tab claims InteractionKinds.LeftPress.
  • Build returns a TabsWidget. Picked is the value of the tab clicked this frame, or null.

State the caller owns

The active tab's value, and the content of each tab.

Theme tokens

  • Strip: a SurfaceRaised fill. Its 36 px height is scaled by runtime.Theme.Density.
  • Active tab: a Background fill with a TextColor.Primary label. The other tabs have TextColor.Secondary labels and a SurfaceRaisedHover hover fill.
  • Panel: a Surface fill and a Border edge, runtime.Theme.Borders.Width wide.

Example

C#
using Bibui.Core;
using Bibui.Core.Runtime;

sealed class SettingsTabs
{
    static readonly TabOption[] Items =
    [
        new("Account", "account"),
        new("Password", "password"),
    ];
    const string AccountText = "Manage your account settings.";
    const string PasswordText = "Change your password.";

    string _tab = "account";   // the caller's state

    public UiNode Build(BibuiRuntime runtime)
    {
        var column = runtime.BeginParent(runtime.Column().Sized(Size.Px(360f)));
        var tabs = runtime.Tabs("settings-tabs", Items, _tab);
        if (tabs.Picked is { } picked) _tab = picked;
        runtime.Gap(Tabs.PanelGap);
        var panel = runtime.BeginParent(Tabs.Panel(runtime));
        runtime.Text(_tab == "account" ? AccountText : PasswordText, textColor: TextColor.Secondary);
        runtime.EndParent(panel);
        runtime.EndParent(column);
        return column;
    }
}
