Text, Icon and Spinner

These three are the runtime's own leaves, not component classes. They are methods on BibuiRuntime that every component builds from. Each one links a node under the parent in scope and returns it, so you can change it before the frame is laid out.

Preview

TextBold, large, accentWrapped (see TextField)

Verified render

Preview

IconIcon, secondarySpinner

Verified render

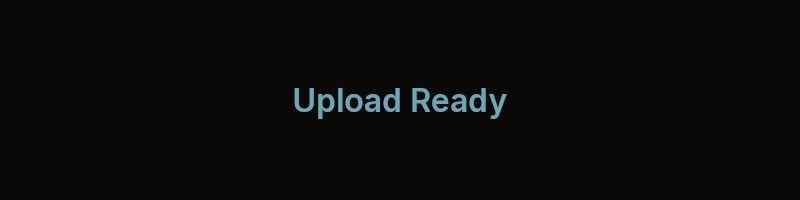

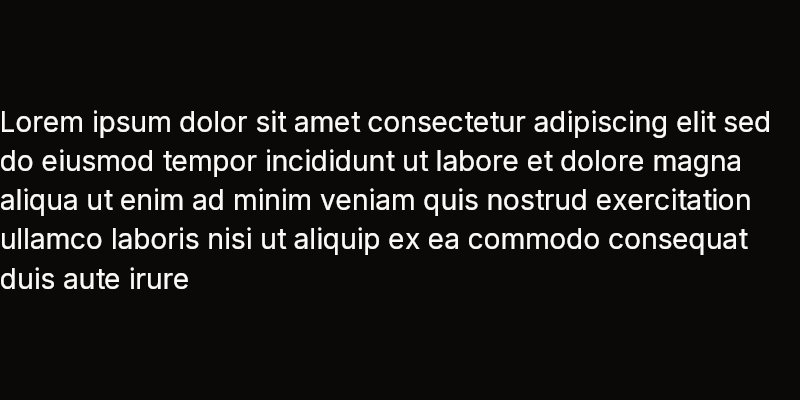

Fixtures: text-label, text-align-right, text-centered-accent, text-color-disabled, text-size-xl, text-size-xxl, text-tracked-eyebrow, text-wrapped-autosize-short, label-default, the icon-* fixtures and spinner-default. Fixtures by component lists them all.

#Text

public Text Text(ReadOnlySpan<char> text, FontSize? fontSize = null, UiColor? textColor = null, FontSlot? family = null)
public Text TextFromId(string id, ReadOnlySpan<char> text, FontSize? fontSize = null, UiColor? textColor = null, FontSlot? family = null)

public void BeginFontSize(FontSize size)
public void EndFontSize()
public void BeginFontFace(FontSlot? family = null, FontWeight? weight = null)
public void EndFontFace()

FontSize and FontFace are the same Begins, handing back a scope whose Dispose is the End.

• text is copied into the node, so a string, a slice of a BibuiStr or text formatted into a stack buffer will all do, and may change as soon as the call returns.
• fontSize is a ComponentSize step (Sm, Md, Lg, Xl, Xxl) or FontSize.Px(n). Without one, the text uses the size begun with BeginFontSize, or Md.
• textColor is a token (UiColor.TextSecondary, or a TextColor such as TextColor.Secondary). Without one, it is TextPrimary.
• The weight comes from BeginFontFace(weight: FontWeight.Bold). The family comes from family, or the one begun, or the body family.
• A text is as large as what it holds, unless a size is begun with BeginSizeX or BeginSizeY. One line, no wrapping: for wrapped text use runtime.MultilineTextField with events: 0.
• Text is keyless and pooled. Use TextFromId when the text must be found again, by a test or an animation.

#Icon

public Icon Icon(string name, float? size = null)

• name is a Lucide-style glyph name, such as "search", "check" or "chevron-down", or the name of an icon the app registered (below). Names ignore case. An unknown name throws in a debug build and draws its first letter in a release build; check a name that comes from data with Icon.IsKnown.
• size is the side in pixels. Without one, the icon uses the font size in scope, so an icon beside a label matches the label.
• Set Color on the returned Icon. Without it, the icon is TextPrimary.

#Icons of the app's own

public static void Icons.Register(string name, string svgPathData)
public static bool Icons.IsBuiltIn(string? name)
public static IReadOnlyList<string> Icons.Names

An app that needs an icon bibui does not have registers it once, at start-up, before the first frame:

Icons.Register("moon", "M12 3a6 6 0 009 9 9 9 0 11-9-9z");   // Lucide, ISC
// ...
runtime.Icon("moon", 16f);

• svgPathData is the d attribute of an SVG path, drawn by the same rules as the built-in set: a 24×24 viewBox, stroked 2 units wide with round caps and joins, never filled, scaled to the icon's size. Draw it for that grid; Lucide's and Feather's icons already are.
• An icon of several elements is one path: join their path data, starting each part with an absolute M (a lone element's leading m is relative to the origin), and write a <circle cx cy r> as two arcs, M{cx+r} {cy}a{r} {r} 0 1 1-{2r} 0 {r} {r} 0 0 1 {2r} 0z. Commands M L H V C S Q T A Z are supported, absolute and relative.
• The path is checked when it is registered, so bad data fails at start-up, not when a frame is painted: a parse error, a path that does not begin with a move, a number that is not finite, or a path with nothing to stroke throws FormatException, naming the icon.
• A built-in name throws ArgumentException: an app icon cannot replace one of bibui's. Registering the same name with the same path again does nothing, so a start-up routine may run twice; with other path data it throws, since two parts of the app disagree about what the name draws.
• Registration is plain strings: no discovery, no reflection, safe under Native AOT. It is meant to finish before the first frame; reads while it happens are safe, but there is no unregistering.
• Icon.IsKnown and the fixture verifier's unknown-icon check see registered icons. Icons.Names lists every name, built-in then registered, for a gallery or a picker.
• Ship the icon's licence with the app. The showcase's AppIcons.cs registers five Lucide icons and credits them in NOTICE.

#Spinner

public Spinner Spinner(float diameter = 24f)

• A ring that turns by itself: it asks for the next frame, so it needs no clock from you.
• The arc is TextPrimary and the track ring is Border, unless you set Color or TrackColor on the returned Spinner.

#Claims and reports

None of the three claims or reports anything.

#Example

using Bibui.Core;
using Bibui.Core.Runtime;

sealed class SearchStatus
{
    const string Heading = "OVERVIEW";
    const string Searching = "Searching…";

    public bool Busy { get; set; }   // the caller's state, shown

    public UiNode Build(BibuiRuntime runtime)
    {
        var column = runtime.BeginParent(runtime.Column());
        runtime.BeginFontFace(weight: FontWeight.Bold);
        runtime.Text(Heading, ComponentSize.Sm, TextColor.Secondary);
        runtime.EndFontFace();
        runtime.Gap(8f);

        var row = runtime.BeginParent(runtime.Row());
        if (Busy) runtime.Spinner(16f);
        else runtime.Icon("search", 16f).Color = UiColor.Accent;
        runtime.Gap(8f);
        runtime.Text(Searching, ComponentSize.Sm);
        runtime.EndParent(row);
        runtime.EndParent(column);
        return column;
    }
}
