docs v1.0.0

Markdown

Returns MarkdownWidgetNamespace Bibui.Core.RuntimeSourceTheme tokens

A read-only Markdown viewer built from boxes and texts. It supports CommonMark blocks and inlines, with GFM tables, task items, strikethrough and bare-URL autolinks. A paragraph wraps as one paragraph across its styles: a bold word, a code span and plain text break together. Links and task boxes take the press and report it. The viewer never changes the source.

Preview
Verified render
markdown-basic
markdown-basic
Preview
Verified render
markdown-table
markdown-table

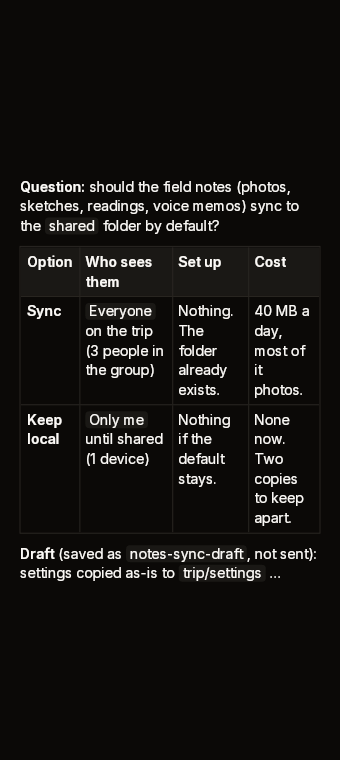

Fixtures: markdown-basic, markdown-table and markdown-narrow.

Build

C#
public static MarkdownWidget Markdown(
    this BibuiRuntime runtime,
    string id,
    BibuiStr source,
    float? width = null,
    ComponentSize textSize = ComponentSize.Md)

public static MarkdownWidget Markdown(
    this BibuiRuntime runtime,
    string id,
    MarkdownDocument document,
    float? width = null,
    ComponentSize textSize = ComponentSize.Md)

public static void ToggleTask(BibuiStr source, int offset);

public readonly record struct MarkdownWidget(Box Node, string? ClickedLink, int ToggledTask)
{
    public bool LinkClicked { get; }
    public bool TaskClicked { get; }
}
ParameterMeaning
idThe viewer's retained root. Its links, task boxes and wide tables are retained boxes under it.
sourceThe Markdown, in a buffer you own. It is parsed once and cached per runtime and id until the text changes, so a frame costs one comparison and the build.
documentA document you parsed with MarkdownDocument.Parse and keep yourself. This skips the comparison.
widthThe viewer's width. With null, it is as wide as its parent, which must then have a width of its own. It is as tall as the document.
textSizeBody text size. Headings use the steps above it.

Italics are set in the body face, because the type system has no oblique face yet.

Claims and reports

  • Each link and each task box claims InteractionKinds.LeftPress. A table wider than the viewer scrolls sideways (ViewScrollX | ClampX | Clip).
  • It returns a MarkdownWidget. ClickedLink is the destination of a link clicked this frame. ToggledTask is the source offset of a task box clicked this frame, or -1.

State the caller owns

The source. To tick a task, pass ToggledTask to Markdown.ToggleTask(source, offset), which edits your BibuiStr in place. To open a link, act on ClickedLink yourself.

Theme tokens

  • Links: Accent. Code spans, code blocks and table headers: SurfaceRaised.
  • Task boxes: an Accent fill and edge when ticked, with an AccentForeground check and an AccentHover hover edge. Otherwise a Surface fill, a BorderHover edge and a BorderFocus hover edge.
  • Rules, quote bars and table lines: Border, runtime.Theme.Borders.Width wide, and Borders.Strong where heavier.
  • Body text TextPrimary, quieter text (quotes) TextSecondary. Spacing is scaled by runtime.Theme.Density.

Try it: a live editor

Write Markdown on the left and the viewer draws it on the right as you type. Click a task box to tick it in the source, and press Escape to stop editing. Both panes are bibui: a MultilineTextField and runtime.Markdown, compiled to WebAssembly and running here.

Live demo
Runs in your browser

A Markdown editor built from a multi-line text field and the Markdown viewer. This demo runs bibui in the browser and needs JavaScript and WebAssembly.

Example

C#
using Bibui.Core;
using Bibui.Core.Runtime;

sealed class ReleaseNotes
{
    // The caller's state: the source, which a ticked task rewrites.
    readonly BibuiStr _source = BibuiStr.FromStrLit("""
        ## Before release

        - [x] Tag the build
        - [ ] Publish the [notes](https://example.com/notes)
        """);

    public string? OpenedLink { get; private set; }

    public UiNode Build(BibuiRuntime runtime)
    {
        var notes = runtime.Markdown("release-notes", _source, width: 480f);
        if (notes.TaskClicked) Markdown.ToggleTask(_source, notes.ToggledTask);
        if (notes.LinkClicked) OpenedLink = notes.ClickedLink;
        return notes;
    }
}
