Dialog

Returns DialogScope → DialogWidgetNamespace Bibui.Core.RuntimeSourceTheme tokens

A modal: a scrim over the whole window with a panel on it. The panel can be centred, or docked to an edge as a sheet (left or right) or a drawer (top or bottom). You build the panel's content between Begin and End. The scrim fades in and the panel slides in as the dialog opens.

Preview
Verified render
dialog-centred
dialog-centred

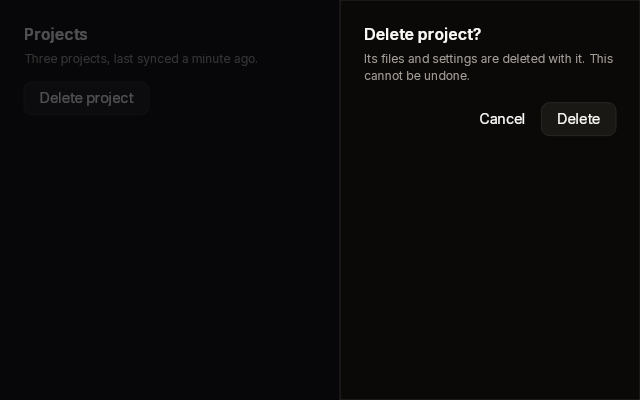

Fixtures: dialog-centred and dialog-sheet-right, each fully shown over a page it dims. The gallery's overlay pages show all four sides.

Begin and End

C#
public static DialogScope Begin(
    BibuiRuntime runtime,
    string id,
    float shown,
    DialogSide side = DialogSide.Center,
    float width = 460f)

// DialogScope
public DialogWidget End();

public enum DialogSide { Center, Left, Right, Top, Bottom }
public readonly record struct DialogWidget(Box Panel, bool Dismissed);
ParameterMeaning
idThe dialog's dropdown root. The panel is the retained box {id}-panel.
shownHow far open it is, eased from 0 to 1. It fades the scrim and the panel and slides the panel.
sideCenter is width wide and as tall as its content. Left and Right are width wide and the window's height. Top and Bottom are the window's width and as tall as their content.
widthThe panel's width, for Center, Left and Right.

Get shown from runtime.Animate(id, "open", open ? 1f : 0f). Ask for it every frame, open or not, so that closing animates too. Build the dialog only while shown is above 0.

Claims and reports

  • The dialog is one of the runtime's dropdown roots. It is drawn over everything, and while it is up nothing beneath it gets a press or a hover.
  • End() asks about the panel (claiming InteractionKinds.Press) after its content, so a press on the panel's padding stops there. Then it asks about the scrim (claiming LeftPress).
  • Dismissed means a press landed on the scrim outside the panel. Close the dialog on it, or ignore it for a dialog that needs an answer.

State the caller owns

Whether it is open. The eased shown lives in runtime.Animate.

Theme tokens

  • Panel: a Surface fill, a Border edge runtime.Theme.Borders.Width wide, and the runtime.Theme.Elevation modal shadow.
  • Scrim: a fixed near-black at 70%, not a token yet.

Example

C#
using Bibui.Core;
using Bibui.Core.Runtime;

sealed class DeleteConfirmation
{
    const string Delete = "Delete…";
    const string Cancel = "Cancel";
    const string Confirm = "Delete";
    const string Question = "Delete this case? This cannot be undone.";

    bool _open;   // the caller's state

    public UiNode Build(BibuiRuntime runtime)
    {
        var trigger = runtime.Button("delete-open", Delete);
        if (trigger.Clicked) _open = true;

        float shown = runtime.Animate("delete-dialog", "open", _open ? 1f : 0f);
        if (shown > 0f)
        {
            var dialog = Dialog.Begin(runtime, "delete-dialog", shown, width: 400f);
            runtime.Text(Question);
            runtime.Gap(24f);
            bool close = runtime.Button("delete-cancel", Cancel, ghost: true).Clicked;
            runtime.Gap(8f);
            close |= runtime.Button("delete-confirm", Confirm).Clicked;
            if (dialog.End().Dismissed || close) _open = false;
        }
        return trigger;
    }
}
