Toggle and ToggleGroup

Returns BibuiWidget, ToggleGroupWidgetNamespace Bibui.Core.RuntimeSourceTheme tokens

A Toggle is a button that stays pressed. It is outlined when off and filled with the raised surface when on, with an optional icon before its label.

A ToggleGroup is a segmented control: items side by side in one outline, with dividers between them. The active item is raised.

Preview
Verified render

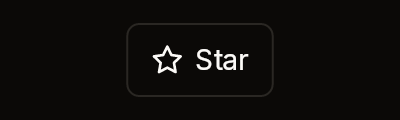

toggle-default
toggle-default

toggle-group-default

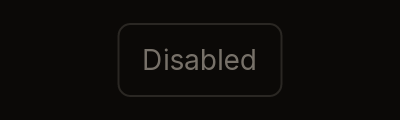

Fixtures: toggle-default, toggle-pressed, toggle-disabled and toggle-group-default.

runtime.Toggle

C#
public static BibuiWidget Toggle(
    this BibuiRuntime runtime,
    string id,
    bool on,
    ReadOnlySpan<char> label = default,
    string? icon = null,
    bool disabled = false)
ParameterMeaning
idThe toggle's retained box.
onDraws it pressed. The toggle never writes it.
labelText after the icon. Optional, so a toggle can be icon-only.
iconThe name of an icon drawn before the label, such as "bold".
disabledDraws the label and icon in the disabled colour and drops the hover fill. Swallows the press.

The box claims InteractionKinds.LeftPress, or Disabled, and returns a BibuiWidget. Flip your value on Clicked.

runtime.ToggleGroup

C#
public static ToggleGroupWidget ToggleGroup(
    this BibuiRuntime runtime,
    string id,
    IReadOnlyList<ToggleOption> items,
    string? value)

public readonly record struct ToggleOption(string Label, string Value);
public readonly record struct ToggleGroupWidget(Box Node, string? Picked);
ParameterMeaning
idNames the items: {id}-{value}.
itemsThe items in order.
valueThe active item's value, or null for none.

Each item claims InteractionKinds.LeftPress. Picked is the value of the item clicked this frame, which may be the active one. A group has no disabled state.

State the caller owns

For Toggle, on. For ToggleGroup, the active value.

Theme tokens

  • Toggle: a Border edge when off, a SurfaceRaised fill when on. The hover fill is SurfaceRaised when off and SurfaceRaisedHover when on. The label and icon are TextColor.Primary, or TextColor.Disabled.
  • ToggleGroup: a Border outline and dividers. The active item is SurfaceRaised with a TextColor.Primary label, and the rest are TextColor.Secondary.
  • Both: lines are runtime.Theme.Borders.Width wide, and the 36 px height is scaled by runtime.Theme.Density.

Example

C#
using Bibui.Core;
using Bibui.Core.Runtime;

sealed class FormatBar
{
    const string Bold = "Bold";
    static readonly ToggleOption[] Alignments =
    [
        new("Left", "left"),
        new("Centre", "centre"),
        new("Right", "right"),
    ];

    bool _bold;                 // the caller's state
    string _align = "left";

    public UiNode Build(BibuiRuntime runtime)
    {
        var row = runtime.BeginParent(runtime.Row());
        if (runtime.Toggle("format-bold", _bold, Bold, icon: "bold").Clicked) _bold = !_bold;
        runtime.Gap(12f);
        var align = runtime.ToggleGroup("format-align", Alignments, _align);
        if (align.Picked is { } picked) _align = picked;
        runtime.EndParent(row);
        return row;
    }
}
