Section

Returns BoxNamespace Bibui.Core.RuntimeSourceTheme tokens

A small, bold caption above whatever you build into it, in a column as wide as its parent. It takes nothing: it only groups.

Preview
Verified render
section-default
section-default

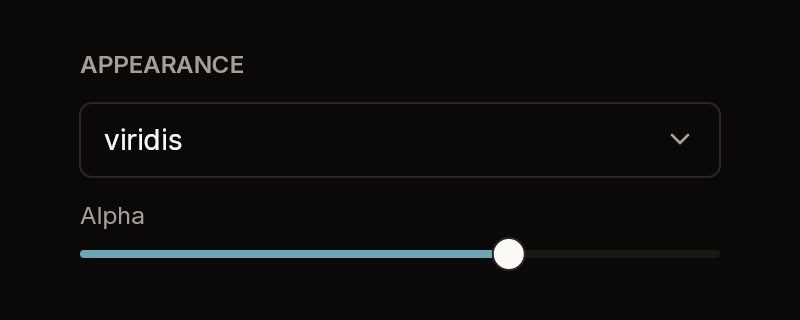

Fixture: section-default: a caption, a closed Select and a Slider.

Build

C#
public static Box Build(BibuiRuntime runtime, ReadOnlySpan<char> caption)

public const float Spacing = 12f;   // under the caption, and between children

It returns the column with the caption already in it. Begin the column as the parent (BeginParent) to build the section's children, and put runtime.Gap(Section.Spacing) between them.

Claims and reports

None. It returns a Box.

State the caller owns

None.

Theme tokens

  • Caption: TextColor.Secondary, bold, at the small size.

Example

C#
using Bibui.Core;
using Bibui.Core.Runtime;

sealed class AppearanceSection
{
    const string Caption = "APPEARANCE";
    const string Dark = "Dark mode";
    const string Alpha = "Alpha";

    bool _dark = true;     // the caller's state
    float _alpha = 0.67f;

    public UiNode Build(BibuiRuntime runtime)
    {
        var column = runtime.BeginParent(runtime.Column().Sized(Size.Px(320f)));
        var section = runtime.BeginParent(Section.Build(runtime, Caption));
        if (runtime.Switch("appearance-dark", _dark, Dark).Clicked) _dark = !_dark;
        runtime.Gap(Section.Spacing);
        _alpha = runtime.Slider("appearance-alpha", _alpha, 0f, 1f, 0.01f, Alpha).Value;
        runtime.EndParent(section);
        runtime.EndParent(column);
        return column;
    }
}
