Slider

A value on a track: a groove, the filled share up to the value, and a round thumb centred on it, with an optional label above. Press anywhere on the track or drag it, and the slider reports the value under the pointer, snapped to the step.

Preview

DefaultDisabled

Verified render

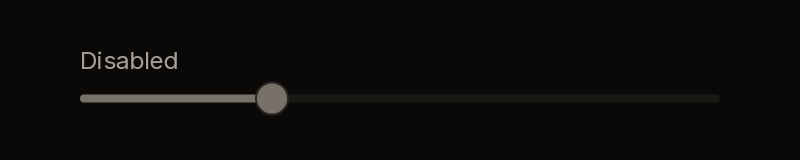

Fixtures: slider-default and slider-disabled-true. section-default shows one in a Section.

#Build

public static SliderWidget Slider(
    this BibuiRuntime runtime,
    string id,
    float value,
    float min = 0f,
    float max = 1f,
    float step = 0f,
    ReadOnlySpan<char> label = default,
    bool disabled = false)

public readonly record struct SliderWidget(UiNode Node, float Value, Interaction Interaction);

It is as wide as its parent unless you size Node. The track is 16 px tall.

#Claims and reports

• The track claims InteractionKinds.LeftPress, or Disabled.
• It returns a SliderWidget. While the track is pressed or dragged, Value is the value under the pointer. At other times it is the value you passed, so you can assign Value every frame and nothing changes until it is touched. If every intermediate value is expensive, wait for Interaction.Released.

#State the caller owns

The value.

#Theme tokens

• Groove: SurfaceRaised. Fill: Accent, or TextDisabled.
• Thumb: TextPrimary (or TextDisabled) with a Border edge runtime.Theme.Borders.Width wide.
• Label: TextColor.Secondary, at the small size.

#Example

using Bibui.Core;
using Bibui.Core.Runtime;

sealed class VolumeControl
{
    const string Label = "Volume";

    float _volume = 40f;   // the caller's state

    public UiNode Build(BibuiRuntime runtime)
    {
        var slider = runtime.Slider("volume", _volume, min: 0f, max: 100f, step: 1f, label: Label);
        _volume = slider.Value;   // unchanged unless the track is being pressed or dragged
        return slider.Node.Sized(Size.Px(320f));   // otherwise as wide as its parent
    }
}
